Time LED recessed

Design Bengt Källgren

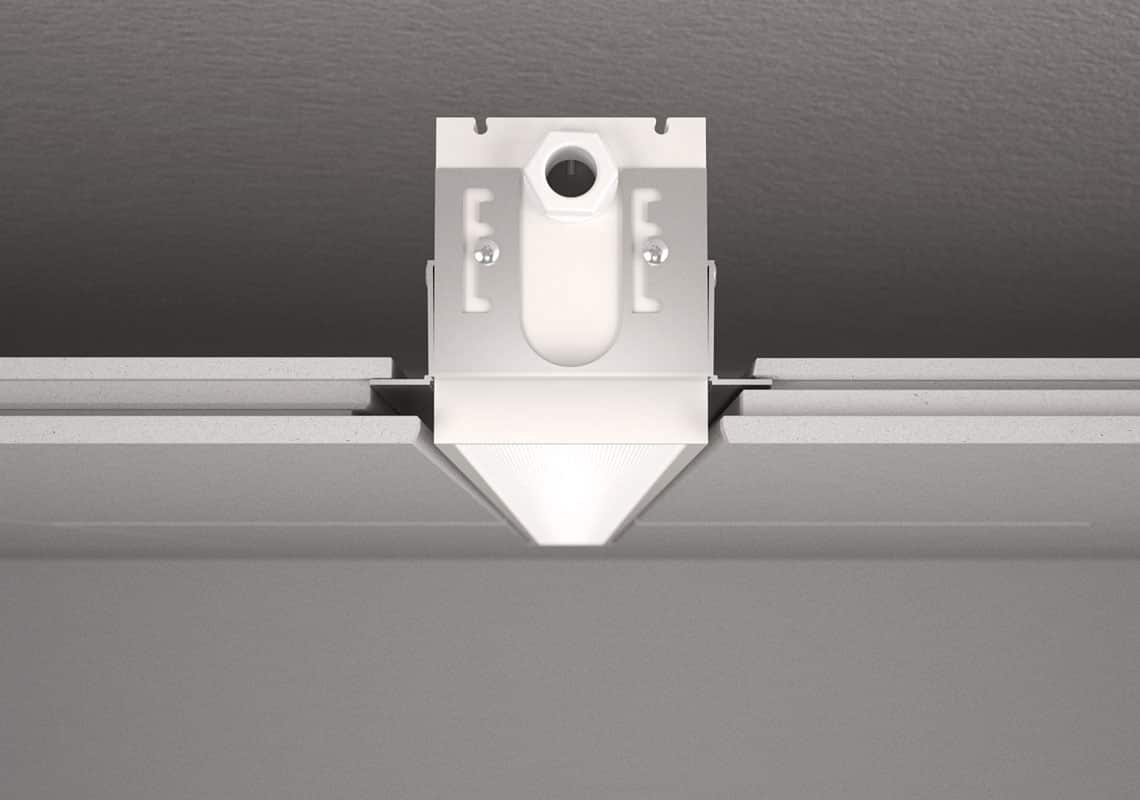

Time LED recessed luminaire is a newly developed lighting system for integration in all types of acoustic ceilings with visible or concealed panels. Its unique adjustability allows the fitting to be mounted at the same level as the ceiling regardless of the type of edging or acoustic ceiling.

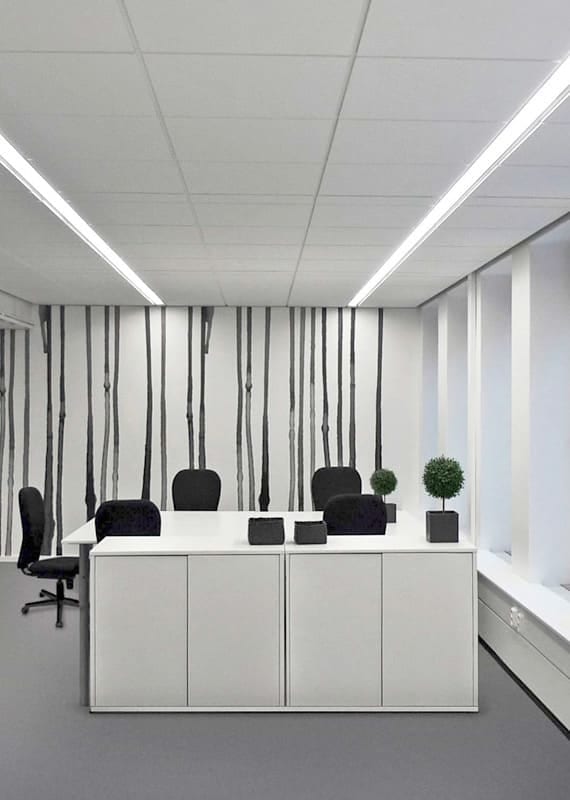

Time is an extensive family of luminaires fitted with the latest LED technology and developed for offices, laboratories, schools and other public spaces.

Single

The single luminaire is supplied with two white lacquered L profiles in aluminium, installed on each side of the luminaire housing and with angle plates at each end.

The lumainaire module lengths are designed to fit standard dimensions of ceiling tiles and panels. Single luminaire module lengths apply for T-24 grids, module lengths for T-15 available on request. Time Single is available in the module lengths of 600, 1200, 1800 and 3000.

For installation of single luminaires in ceilings, the dimensions of ceiling tiles and panels should be adjusted depending on the placement of the luminaire in the grid. These are ordered from the man- ufacturer of the ceiling tiles or cut by the ceiling contractor.

System

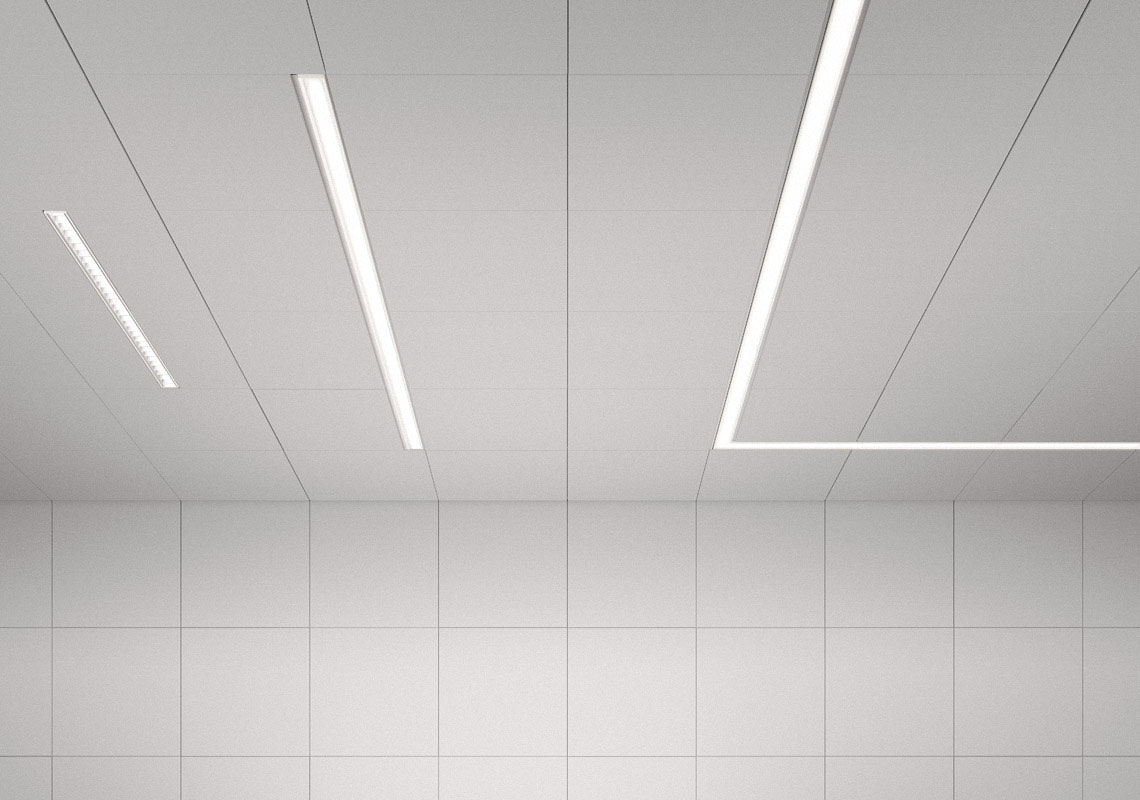

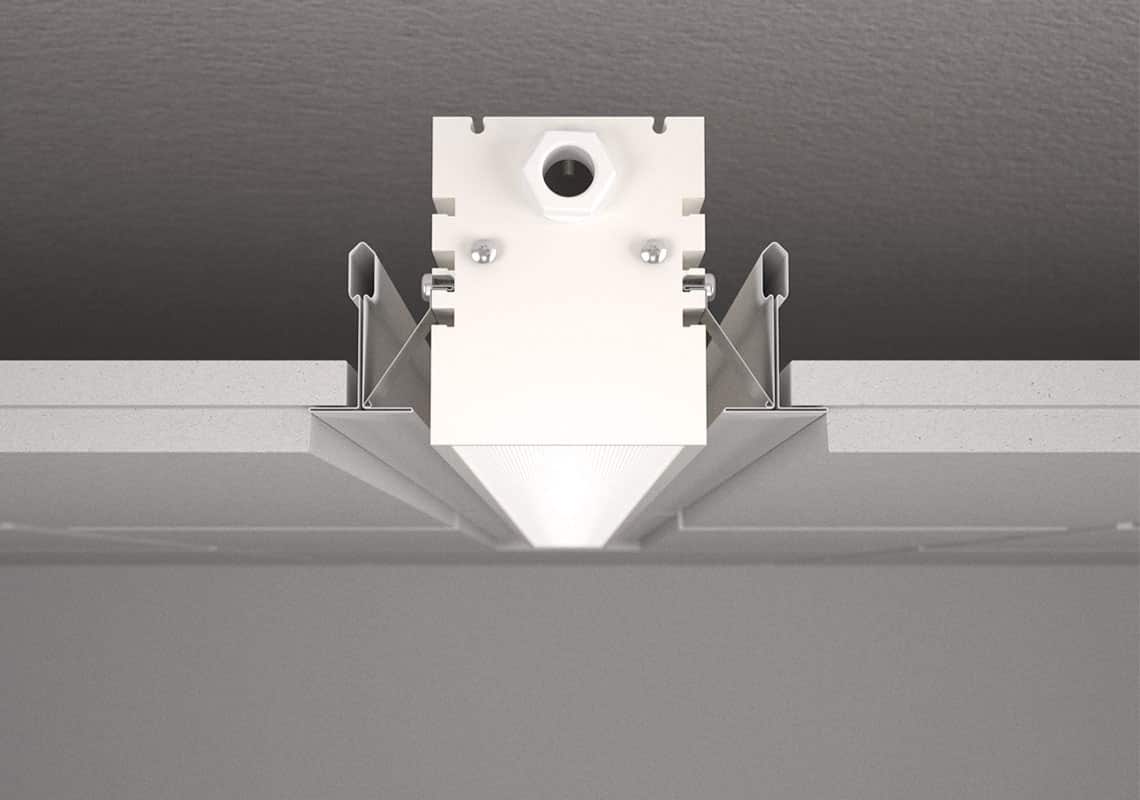

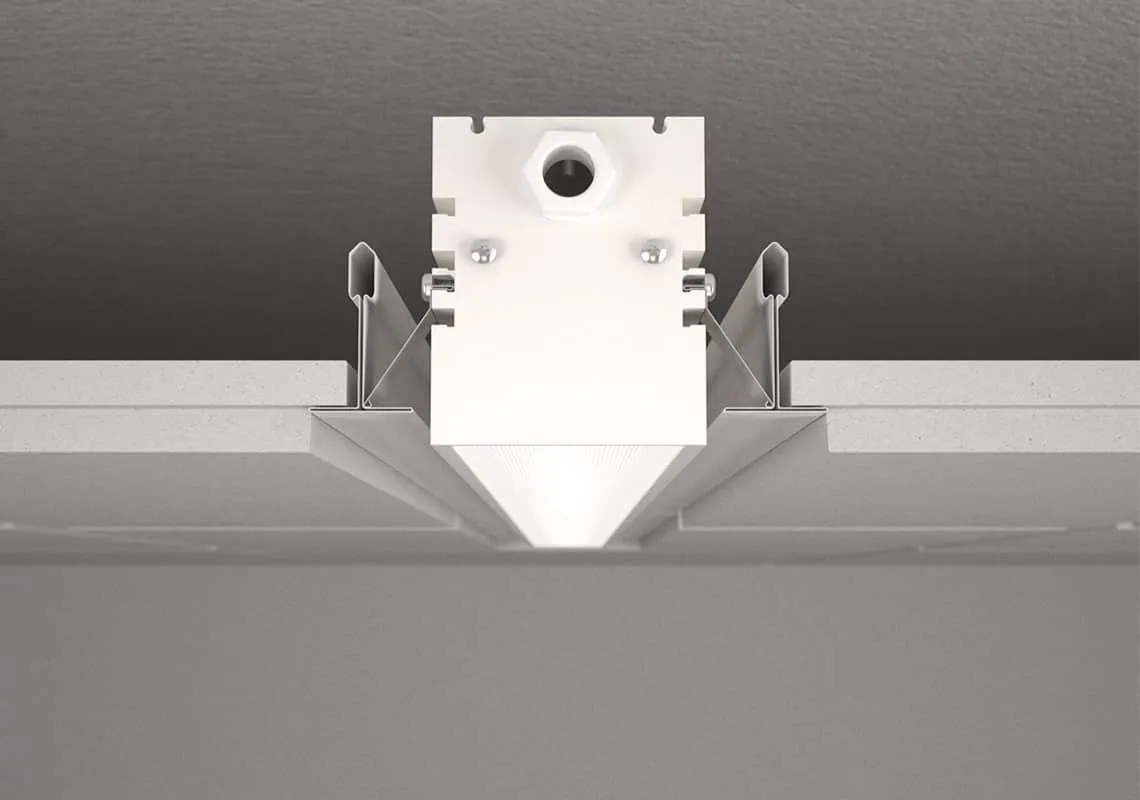

With Time System you can create long lines of light. On request, you can also order customised 90 degree corner sections to create customised L, U or O formations. The system luminaires are supplied with springs attached on either side of the fitting (2 x per metre). The fitting is always installed between two cross tees/main runners c-c 100 mm. The fitting can be easily accessed and demounted if required from underneath.

Time meets the latest standard SS-EN1 2464-1 according to Ljus & Rum/Arbetsmiljöverket (The Swedish Work Environment Authority) regarding luminance and screen work and can be delivered (10 /17) with a choice of lumen output.
